Our ThermoShield™ Steel Panel Kits deliver exceptional insulation and protection for portable and temporary structures. Each kit includes durable Structural Insulated Panels (SIPs) with polyurethane insulation and sealed joints for reliable resistance to water and wind in any environment. The system also features aluminum U-Channel Side Rails and Bottom-Panel Rubber Astragals, creating a complete all-in-one solution.

ThermoShield™ Steel Panels

Panel Dimensions

Thickness: 1.375 in. (34.925 mm.)

Height(s): 18 in. (457.2 mm.) or 24 in. (609.6 mm.)

Length: 190 in. (4 m. 8256 mm.)***

Material Type

Outer Panel: Steel, Powder-Coated

Inner: High-Density CFC-Free Polyurethane Foam

Color: White (Additional Colors Available Upon Request)

Features
  • Tongue and groove construction with tightly sealed interlocking section joints, ensures a secure fit
  • Includes high-performance foamed-in-place polyurethane insulation that provides excellent thermal efficiency, with a U-Value of 0.0825* and R-Value of 12.12**
  • Wind and water resistant for reliable performance in any environment
  • Works with our Steel Plenums to provide proficient air circulation

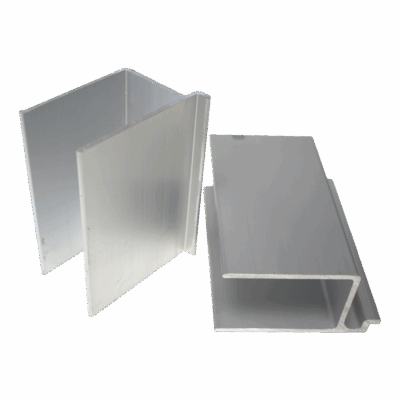

U-Channel Rails

Dimensions

Length: 149 in. (3 m. 784.6 mm.)

Inside Channel Width: 1.535 in. (39 mm.)

Channel Depth: 2.67 in (68 mm.)

Features
  • Anodized for increased durability and protection against moisture and other corrosive elements
  • Available for Middle and Corner Bays

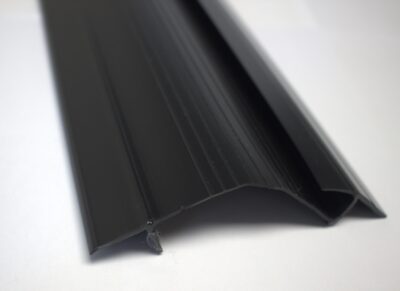

Astragals

For A Complete Solution

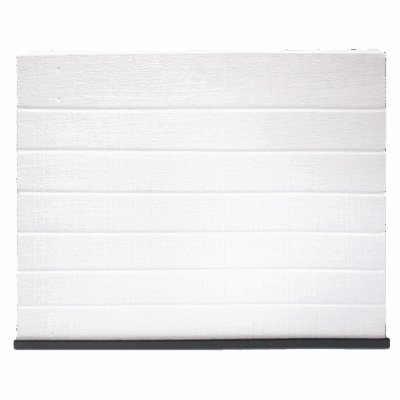

  • Bottom panel rubber Astragals, to improve weather proofing and temperature control
  • High quality construction for efficient air circulation, using our Steel Plenums
  • Streamline construction using high-quality, corrosion-resistant U-Channels
  • Individual parts available for purchase upon request
